USDP-R3000

4K compatible signage player

Model number: ME-UDR3000-HSSD

SKU 4562393842743 Category

This product is a 4K-compatible digital player that plays content files stored in the internal storage of the main unit or connected USB storage. Stream playback from network cameras and our servers is also supported. You can connect up to 4 monitors. In addition to video playback on the main unit itself, it is possible to use the Display Content Manager (sold separately) for schedule playback and playlist playback that lays out videos, still images, and telops.

Seamless playback of 4K high-definition video

By using a projector or monitor that supports 4K, 4K images can be displayed seamlessly.
By reading the schedule in advance, it supports seamless playback without interruptions such as video switching.

Supports 2K/4K output

Supports 4K (3840 x 2160) and HD (1920 x 1080) output.

Supports video/still image/telop

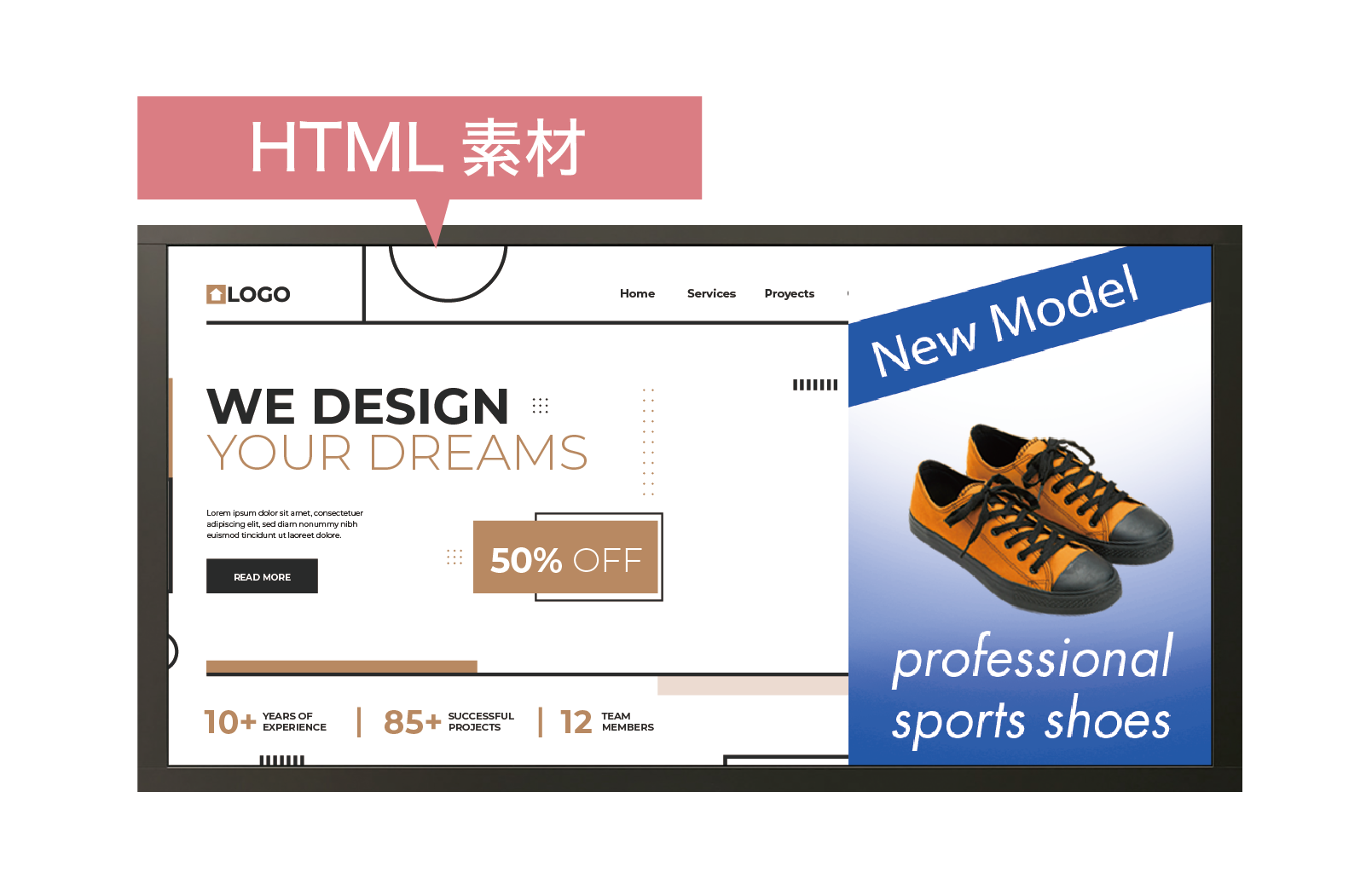

Equipped with a browser compatible with HTML5, HTML materials can be registered as content

Video, still image, file, caption can be displayed separately

Diverse 4-screen multi-monitor layout function

Supports roll/crawl telop across 4 monitors

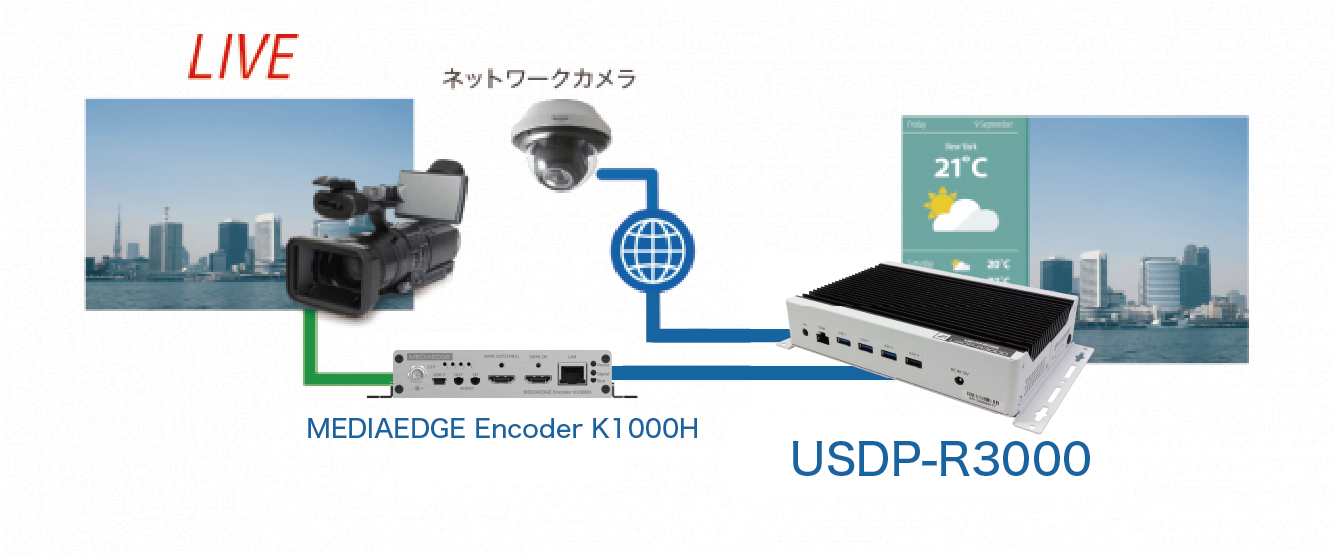

Live encoder / network camera compatible

Supports Pioneer LD/DVD compatible serial control

Other features

4K (3840 x 2160) video compressed with H.265/H.264 can be played.

Equipped with four HDMI 2.0 connectors, it is possible to display 4K x 1 screen or full HD x 4 screens.

Supports multi-monitor and bezel correction.

Supports seamless playback without interruptions such as video switching.

A laid-out program can be played according to a schedule.

– The layout conforms to SMIL, and it is possible to display a mixture of moving images, still images, and telop materials.

– Supports schedule and layout specification by using Display Content Manager (sold separately).

* Mixed display of HTML material and video/still image/telop is not supported.

By calling the Web API from the outside, you can interrupt the schedule and play another video or still image.

– It can be used for text broadcasts in emergencies.

Live images from network cameras, etc. can be played back together with videos, still images, and telop materials.

You can update the schedule and contents while playing the schedule.

– Automatically switch to new content after content update is complete.

– Supports multiple content update methods of push type and pull type.

It is possible to link with our cloud services (DCM Cloud, Marcus, Tsutto Sign, etc.).

It is equipped with a browser that supports HTML5, and supports HTML materials as content.

It supports external control and remote monitoring using Web API, and can be controlled and monitored via the Internet.

Supports Pioneer LD/DVD compatible serial control.

It supports various networks.

-IPv4, IPv6

– Access to shared folders

– Content can be updated, controlled, and monitored in an Internet environment

– Can be operated without a network for local storage playback

High compatibility is achieved by adopting a common platform with MEDIAEDGE Decoder, which boasts stability and achievements.

Realized stable operation by adopting Linux OS.

streaming playback
Live encoder compatible models ・MEDIAEDGE Encoder K1000S / MEDIAEDGE Encoder K1000H
・SC6D0N1 AIO
・MEDIAEDGE LEB Pro2 / MEDIAEDGE LEB
Express2 ・ME-CLEB P4
Server / repeater compatible models ・MEDIAEDGE Server / MEDIAEDGE IP Transponder MK1 / MEDIAEDGE IP Transponder MK2
Supported protocol ・RTP / RTSP
・SRT (Supports Caller / Listener)
・HLS
Content playback
movie Supports playback of video files compressed with H265, H.264 or MPEG-2.
(Restrictions on playable files vary depending on content played simultaneously and other conditions)
ITU-T Rec. H.265 (ISO/IEC 23008-2 HEVC)
– Maximum profile level: Main profile Level 5.1
– Maximum resolution : 3840×2160
– Max bitrate: 50Mbps
– Max framerate: 60p
– Color space: 4:2:0
– Color depth: 8bit
– File format: m2ts, mts, mp4, mov
MPEG-4 AVC / H.264 ( ITU-T Rec. H.264)
– Maximum profile level: High profile Level 5.2
– Maximum resolution: 3840×2160
– Maximum bitrate: 100Mbps
– Maximum frame rate: 60p
– Color space: 4:2:0
– Color depth: 8bit
– File format: m2ts, mts, mp4, mov
MPEG-2 (ISO/IEC 13818-2)
– Maximum profile level: MP@HL
– Maximum resolution: 1920×1080
– Maximum bitrate: 35Mbps
– File format: mpg, m2p, m2t
Audio (audio format included in the video) MPEG-1 Audio Layer1, Layer2 (ISO/IEC 11172-3)
MPEG-2/4 AAC-LC (1-2ch)
PCM
Still image Still images can be enlarged or reduced to an arbitrary range and displayed.
-JPEG (Exif)
-PNG
-GIF
-BMP
extension
-jpg, jpeg, png, gif, bmp
HTML Equipped with a browser that supports HTML5.
(We do not guarantee that all HTML5 pages can be displayed correctly)
Extension
-html, htm, asp
telop Capable of displaying telops in Japanese and English.
Text and background colors, font size, and scroll speed can be set for telops.
-RSS -Text
(Character code is UTF-8 or Shift JIS)
Extension
-text, txt, rss, xml, rdf
SMIL Supports playback of playlists (a subset of SMIL2.0) created using “Display Content Manager” (sold separately, hereinafter referred to as DCM) .
extension
-smil, smi, sml
Reproducible number of USDP-R3000 Video: 4K x1 or HD x4
Still image: 8
Text: 1
HTML: 2
network
LAN port 1000Base-TX Ethernet/IEEE802.3 frame format compliant
Auto-negotiation support Full-duplex support
RJ45 modular connector x 2
video audio
HDMI output HDMI Ver2.0, HDCP not supported, CEC (*), DeepColor not supported, HDR
not supported, color space RGB only (*) Supported by USB CEC adapter
HDMI (Type A, 19 pin) x 4
3840×2160 60p/30p/29.97p
1920×1080 60p/59.94p/1920×1080 59.94i
HDMI embedded audio (LPCM, 2ch, 48kHz)
Analog audio output Stereo line output (unbalanced)
3.5mm stereo mini jack x 1
general purpose input/output
Serial port RS-232C
1 x RJ45 modular connector
USB 3.1 USB 3.1 compliant
USB Type A x 3
USB 2.0 USB 2.0 compliant
USB Type A ×1
internal storage Usable area for content registration
Approximately 210 GB (At 8 Mbps, approximately 62 hours of video content can be registered)
Rating
AC adapter 100V to 240V AC (50Hz/60Hz)
DC 12V 7A 84W
Operating temperature range 0 to 45°C
Operating humidity range 0% to 90% RH (non-condensing)
RoHS correspondence
External size 200.8 (W) x 139.3 (D) x 41.2 (H) mm
* Protrusions not included.
mass Approximately 1.7 kg (excluding AC adapter)
